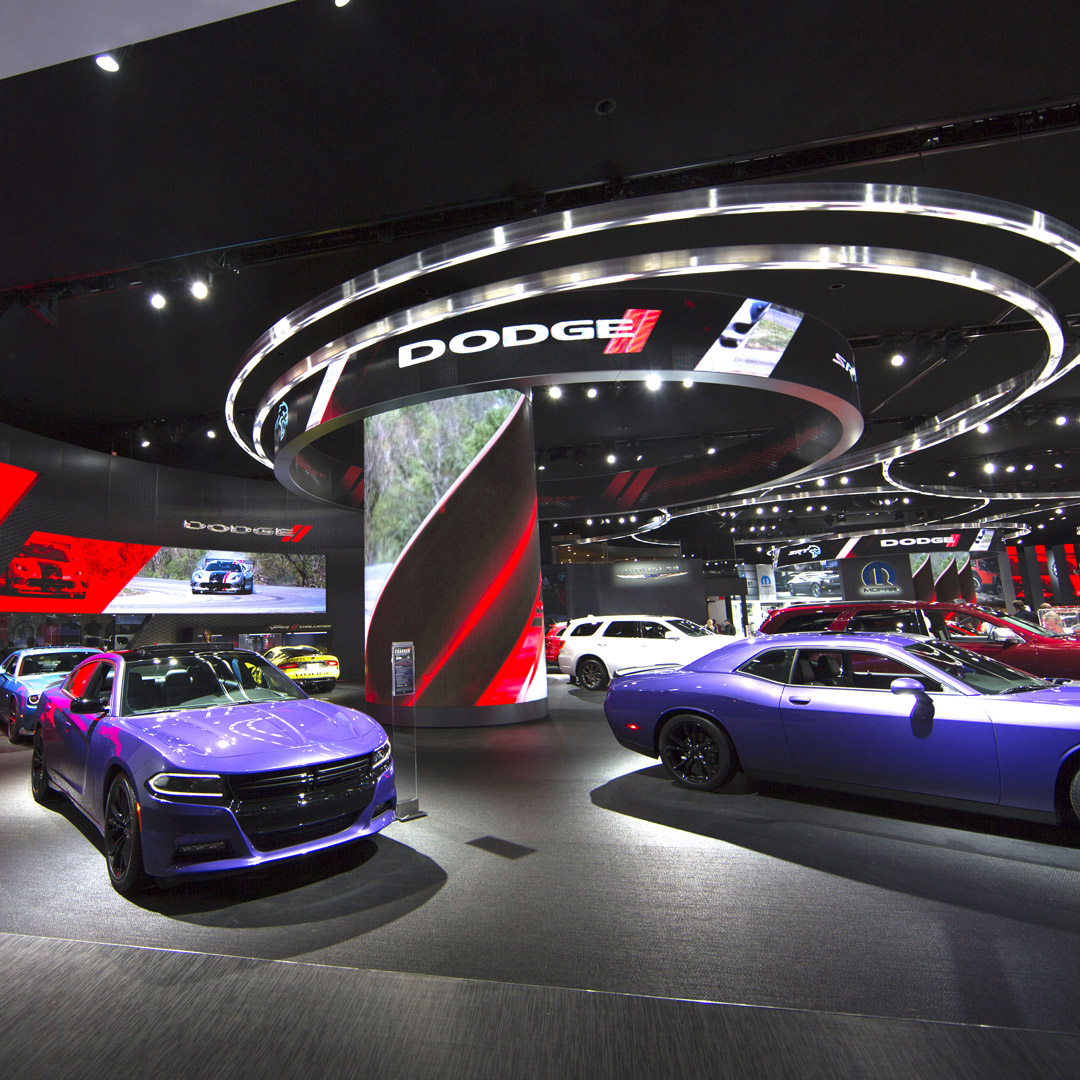

TiMax spatial mix and immersive audio, NAIA auto show, Detroit
 TiMax spatial mix and immersive audio, The Hive, Milan Expo
TiMax Basel Tattoo spatial audio mix
TiMax immersive spatial audio, Fremont Street Experience, Las Vegas
TiMax Tracker D4 logo blue

Evolutionary immersive spatial audio

TiMax SoundHub spatial audio processor delay matrix & showcontrol


TiMax creates
full-saturation immersive audio to engage and excite Performance, Presentation and Experience audiences

Enriched focus and emotion with stunningly authentic and enveloping dynamic soundfields

Total Control

Total Package

Total Immersion

“As soon as I’m in a position to use TiMax with tracking everything sounds so natural”

“I was super happy with the sound on the show - TiMax made it work”


“In a fully immersive performance space nothing does quite what TiMax does”

“TiMax is still the only product that will effectively spatially reinforce a three-sided arena”


“TiMax was pivotal to our sound design across the whole event and the only way of doing it”

“That’s the golden trick of TiMax Panspace - you just show it what you want and they will hear it”


TiMax
offers unrivalled versatility to create total immersion, engagement and impact for any show, any audience


And it’s easy to spot the difference...

Intimate immersion for the entire audience, no sweet-spot

Authentic spatial mix at every seat

Any size and shape of venue or audience

Any speaker brand, flexible and minimal system design

Real object-based 3D localisation, beyond level-panning

Total spatialisation flexibility, free from restrictive algorithms

Smooth and transparent dynamic spatial morphing

Visual layered spatial audio rendering and programming

Uniquely embedded Cueing and showcontrol

On-board system dsp, presets and audio playback

Future-proofed proprietary FPGA hardware platform

Fully in-house concept, design and build

Integrated TiMax TrackerD4 Precision Stagetracking

No other spatial audio platform delivers all this in a single box

Total Control.  Total Package.  Total Immersion.

Multi-client Mac and PC workflow

TiMax SoundHub spatial audio task-based Mac & PC workflow, PanSpace speakers layout

TiMax PanSpace spatially maps a venue in 3D with auto-rendered virtual Image Definitions; multiple PanSpace layers let you plot and edit spatial positions and movements of voices, music atmospheres, soundscapes and effects

The object-based workflow is child's play.  The holistic FPGA spatial processing behind it uniquely morphs dynamic delay-matrix parameters to ensure full immersion and localisation for the whole audience.
Integrates with TiMax TrackerD4 stagetracking

TiMax SoundHub spatial audio task-based Mac & PC workflow, PanSpace Image Definition objectsTiMax SoundHub spatial audio task-based Mac & PC workflow, PanSpace layered Spatial rendering
TiMax SoundHub spatial audio task-based Mac & PC workflow, TimeLine playback and showcontrol

TiMax TimeLine uniquely integrates with PanSpace to schedule and manage timings for your immersive spatialisation and pan Cues, with intuitive DAW-style visual workflows.  Spatialisation and mix automation work both with external audio or internal 32- and 64-track playback, which also features sound-file offset, editing, and looping.

TimeLine also assigns incoming Cue triggers and sends synchronised showcontrol events, including MIDI, MTC, Follow-On, XML/UDP, DateTime

TiMax SoundHub spatial audio task-based Mac & PC workflow, TimeLine playback and showcontrolTiMax SoundHub spatial audio task-based Mac & PC workflow, TimeLine playback and showcontrol
TiMax SoundHub spatial audio task-based Mac & PC workflow, Mixer EQ and system processing

TiMax Mixer control centre gives you complete input, output and matrix processing control and monitoring, with faders, meters, EQ, Link, Solo, Mute and nested DCA Groups for multiple source and system zone control

The Mixer also hosts the Cue List to manage spatialisation and playback events, plus live system and Cue parameter snapshots. It also handles Show File and Archive open/save, show data library export/import and Utilities

TiMax SoundHub spatial audio task-based Mac & PC workflow, Mixer Cue List show managementTiMax SoundHub spatial audio task-based Mac & PC workflow, Mixer show and archive files and libraries
TiMax OSC window screenshot

TiMax OSC window allows simplified remote control of input and output levels, Cues, mutes, DCA groups and 2D or 3D spatialisation. Makes it simple to connect TiMax to QLab as a showcontroller for example

TouchOSC offers an inexpensive and simple third-party option for touchscreen tablet control, with XY panners scaled to spatialise across defined areas of PanSpace

OSC is also how TiMax TrackerD4 stagetracking drives live TiMax SoundHub 3D vocal localisation

Touch OSC TiMax Outputs screenshotTiMax mix pans screenshot

TiMax gives you flexible object-based tools to render complex spatial mixes and intimate immersive soundscapes



The combination of a versatile object-based spatial audio platform, integrated showcontrol and audio playback makes the award-winning TiMax SoundHub truly a show-in-a-box solution, with unparalleled functionality for a single self-contained unit.  Individual or multiple TiMax units will sit and run shows or immersive installations without any computers attached, day after day and even automatically after powering off overnight and back on next day.


TiMax employs unique delay-matrix Image Definitions which map a stage or space with multiple spatial reference points, then holistic delay-morphing alogorithms interpolate seamlessly between them for static or moving input objects.  TiMax instantly calculates these Image Definitions automatically, applying user-adjustable adaptive level-shading and over-delay parameters to optimise the spatial rendering.  Image Definitions can also be manually fine-tuned to taste, and the intuitive task-based Mac and PC software makes for a rapid and straightforward workflow.

This means TiMax automatically tailors immersive spatialisation for the relative positions of stage, loudspeakers and audience.  And it does this equally well for any size and shape of stage or audience, employing un-typically minimal and flexible speaker system configurations from virtually any brand or type.  All while giving you full visibility and agency over every spatial audio parameter, so you can readily meet extreme sound design challenges or especially creative immersive spatialisation demands.


The benefits and impact of TiMax's hybrid dynamic delay and level spatialisation are incomparable to level-panning, which largely spreads or moves mix elements across a number of speaker channels. TiMax strategic control of Haas-effect Precedence in multiple dimensions creates a genuine spatial mix which localises directly onto performer voices, instruments or other sources, enhancing intelligibilty and providing authentic sonic panoramas for both real acoustic sources or off-stage multichannel live or playback content.

If your spatial desires are more about an enhanced "cinematic" experience, or seductively enveloping 3D soundfield immersion, TiMax image definition objects will also deliver both across the whole audience without any sweet-spot.  Audiences, visitors, delegates, customers, congregations - all only hear the sound, not the system.  And TiMax achieves this even for the trickiest, largest, or strangest of venues and shows, as well as excelling in mainstream performance, presentation and experience spaces.


Each TiMax SoundHub spatial audio processor incorporates a scaleable, object-based, dynamic delay-matrix and proprietary FPGA dsp engine to manage multiple sources and multiple zones in live performance, presentation and experiential installations, ranging from theatre, opera, touring, corporates, cruise ships and faith venues through to museums, experiences, attractions, theme parks, retail and nightclubs.

The compact 2U TiMax SoundHub chassis comes licensed in 32x32 or 64x64 standard configurations with Dante or MADI I/O.  Optional on-board premium quality analogue or SRC AES3 I/O is available in slabs of 16 inputs and 16 outputs.  You can also specify reassuring dual failsafe PSU's and fans.


Comprehensive functionality includes a 3-source submixer per input channel, input and output parametric EQ for source sweetening and room tuning, Image Definition and EQ libraries you can transfer between shows,  32 nest-able DCA groups for flexible source and zone management, showcontrol Cue List including per-channel snapshots for source/fader/EQ/routing, TimeLine with real-time mix automation, built-in editable and loop-able 32- or 64-track audio playback, plus a massive range of uniquely embedded showcontrol hooks.

Having all this in one integrated package avoids extra cost and logistics involved in interfacing and synchronising to external third-party devices.  However with its comprehensive Cue List and on-board ports and protocols like Dante, MADI, MIDI, MTC, OSC, UDP/XML and GPIO, its also quick and easy to hook up TiMax to the likes of QLab, Ableton, Medialon, TouchOSC, AMX, Crestron, QSys etc, and most mixing consoles or other showcontrol and performer tracking, including TiMax TrackerD4 precision stagetracking.

TiMax SoundHub Spatial Audio processor

TiMax SoundHub immersive spatial audio processor front panel

immersive audio  ●  localisation  ●  spatial mix engine
routing  ●  mixing  ●  equalisation  ●  delay-matrix  ●  playback
zone control  ●  mix groups  ●  presets  ●  remote control
MADI or Dante  ●  analogue & AES  ●  48/96KHz(soon)
PanSpace  ●  TimeLine  ●  MIDI  ●  MTC  ●  GPIO  ●  FollowOn
OSC  ●  UDP/XML  ●  DateTime

32x32 or 64x64 spatial audio, playback and showcontrol all in one box

Specifications

TiMax SoundHub immersive spatial audio processor rear panel

2U 19” Rack mount steel chassis, 450mm / 17.5” deep, 10kg / 22lbs approx weight.

Internal FPGA 48KHz (96KHz firmware upgrade coming soon), CPU, SSD, MADI or Dante 32x32 (32-Track); 64x64 (64-Track);  OPTIONAL AES or Analogue 16x16 I/O modules

Forced air-cooled, low fan noise, OPTIONAL extra redundant fan.

EMC shielded to conform to CE / UKCA interference emission and susceptibility requirements.

OPTIONAL S-Version licence for PanSpace and TimeLine spatial rendering, showcontrol and tracking

OPTIONAL extra redundant PSU with additional IEC connector

OPTIONAL TiMax Portal bespoke touchscreens, custom GUI design service.

Dante64: 64-in & 64-out, 48KHz, (Dante64X: 64-in & 64-out, 96KHz / 48KHz coming soon)
OR
MADI64: 64-in & 64-out 48KHz on BNC and Optical, plus BNC Word Clock in/out

OPTIONAL AIO Analogue I/O card:  16-in & 16-out line-level in groups of 8 balanced signals on female DB25’s (Yamaha analogue pinout)

OPTIONAL MIO AES Digital MIO I/O card:  16-in & 16-out AES3 on separate DB25’s plus 16 analogue outs on two DB25’s.  (Yamaha analogue pinout for both Analogue and AES).  Sync selectable from internal 48KHz or 96KHz clocks, external Word Clock source via BNC, or selected AES3 input(s).  Input and output SRC’s allow multiple sample-rates across different AES inputs and outputs.

Headroom: +22dBu;   Dynamic Range:114dB;   THD+Noise: <0.002%, 20-20KHz;   Fixed latency: <2ms

Two MIDI in/out DIN socket pairs, MIDI Prog / Note / MTC on both;  also on Port1-In:  MIDI Controllers can control Group faders 1-32;  also on Port2-In:  MIDI Controllers can control PanSpace Zone input object changes.

RJ45 Ethernet (UDP) for PC/Mac control and XML/UDP remotes or showcontrollers.  Up to four client computers, auto-config plug ‘n play default with DHCP, static IP and forced IP modes.

Power Supply: 130W universal voltage 80-265VAC at 50/60Hz.  OPTIONAL Dual redundant Inlet on fused IEC connector(s) Conforms to European LVD, UL, CSA, Nemco safety requirements, filtered to conform to CE requirements.  Conforms to UKCA requirements

Routing/level/delay-matrix FPGA spatial audio processor core in configurations 32x32 or 64x64.  Field upgradeable from 32 to 64 with license key

4-band parametric EQ on inputs, 8-band parametric EQ on outputs, linkable

32 assignable input and output DCA Group level controls, also on front panel LCD

Input Source Submixer for Analogue (or AES) / Playback Track / Network on each input channel

Live cross-fadeable Cue Snapshots between Submix sources, I/O levels, level/delay matrix routings. Also EQ without crossfade.

Cue Snapshots assignable to selectable I/O channels and parameters

Dynamic delay-matrix spatialisation controllable by PanSpace, TiMaxTrackerD4 and external OSC

Advanced holistic FPGA smooth delay-panning algorithms for ultimate transparency

Image Definitions, EQ's, Groups, Channel Labels, System Preset exportable between shows.

Multi-channel random-access audio playback 32- or 64-track on (minimum) 250Gb SSD

Multiple units accessible from up to four Mac or PC control software clients

256 GPIO input trigger ports matrixed on DB25

OSC input control of PC/Mac software: levels, mutes, groups, cues, Panspace spatialisation, 3D stagetracking control

Front panel Menu:  I/O Meters/Solo/Mute, Group Levels/Solo/Mute, Show select, Cue select, Utility, IP.  Password protected.

AES Input SRC’s allow different 44.1 / 48 / 96KHz incoming sample rates on any AES3 input pair.

AES Output SRC’s allow different 48 / 96KHz sample rates and clock source on any AES3 output pair.

SoundHub-S licence:


PanSpace adaptive auto-rendering of Image Definition localisation and spatialisation objects. Embedded TiMax TrackerD4 functionality, per-channel tracking Enable/Disable within Cues.

Integrated PanSpace and Time Line automated immersive spatial rendering on multiple SubSpace layers, scheduling and timing of input object panning across level/delay Image Definition objects.

TimeLine comprehensive audio playback editing, mix automation, advanced audio showcontrol, Cue input Triggers (FollowOn, MIDI/MTC, Show Clock, OSC) and output Events (MIDI/MTC, UDP, ShowClock) programming.   Timing and scheduling of PanSpace programmed trajectories.

Elements of the TiMax object-based sound animation are protected under US Patent


 Manufacturer reserves the right to change specifications without notice
